Released Ariane 6 fairing accommodation

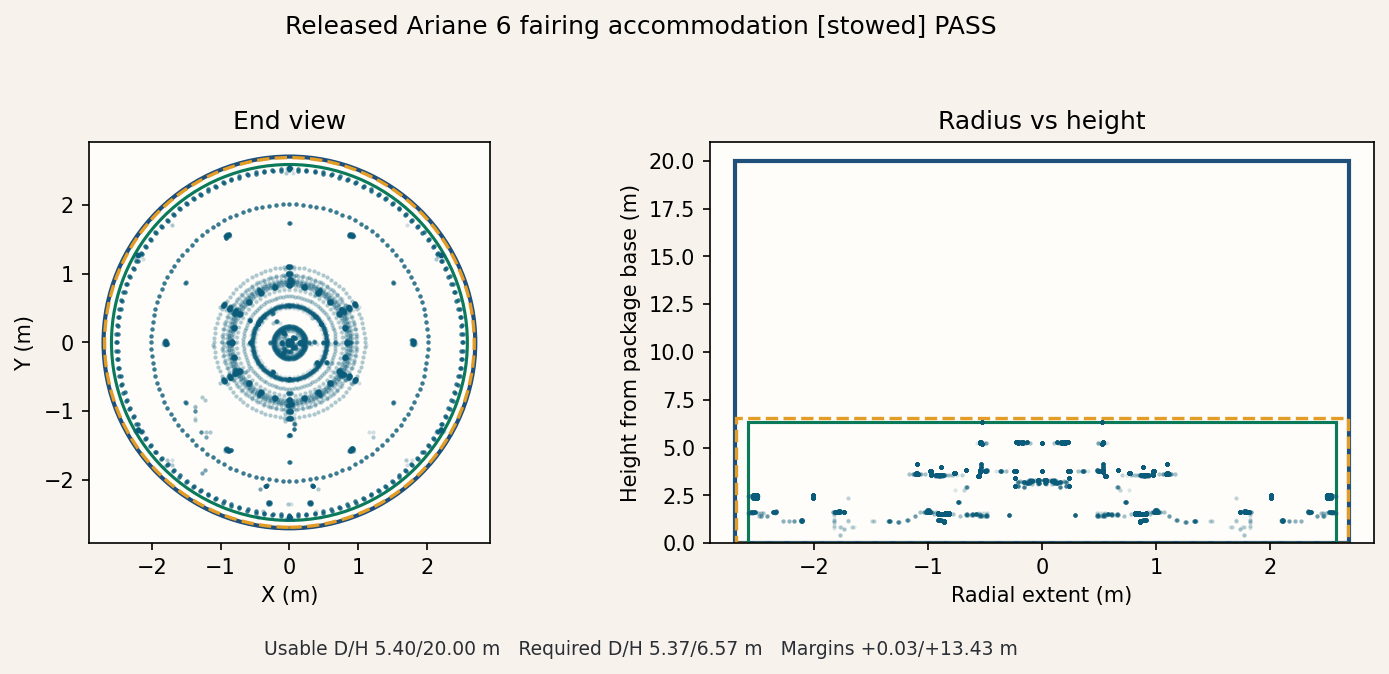

released_launch_vehicle [stowed]
Launch envelope comparison
This page compares the released geometry against the launcher catalog and the declared packaging constraints used for stowage and transport screening.
Compare configuration
stowed
Transport configuration
stowed
Target launchers
ariane6
Packaging constraints
PASS
Geometry envelopes
Deployed envelope: diameter 7.14 m, height 5.69 m
Stowed envelope: diameter 5.17 m, height 6.32 m
Transport envelope: diameter 5.17 m, height 6.32 m
See report.md, summary.json, vehicle_comparison.csv, and packaging_constraints.csv.
Declared Packaging Constraints
| Key | Title | Config | Type | Diameter (m) | Height (m) | Radial margin (m) | Axial margin (m) | Preview | Result |
|---|---|---|---|---|---|---|---|---|---|
released_launch_vehicle | Released Ariane 6 fairing accommodation | stowed | launch_vehicle | 5.40 | 20.00 | +0.03 | +13.43 | preview | PASS |
vertical_transport_canister | Vertical transport canister | transport | transport | 5.60 | 7.20 | +0.33 | +0.73 | preview | PASS |
Vertical transport canister

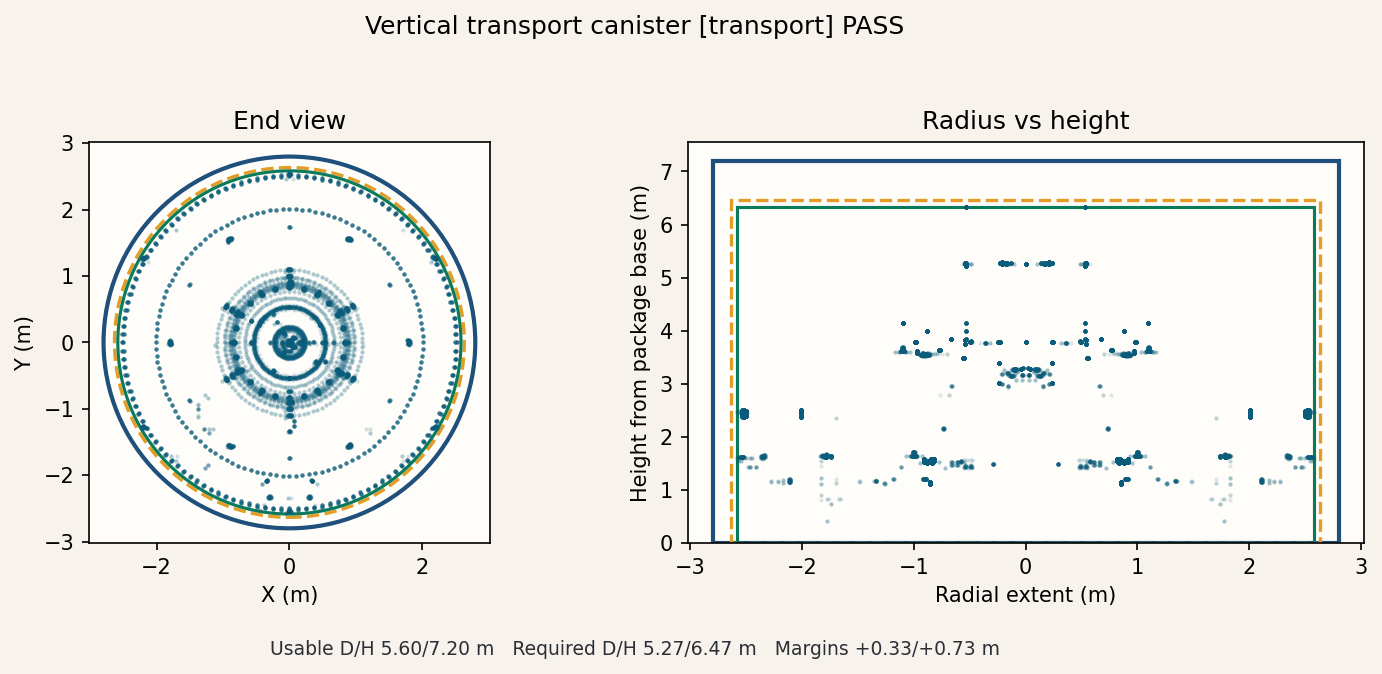

vertical_transport_canister [transport]
Launcher Catalog
| Launcher | Fairing | Diameter (m) | Height (m) | Radial margin (m) | Axial margin (m) | Target | Result |
|---|---|---|---|---|---|---|---|
| Vulcan Centaur | 5.4 m standard fairing | 5.40 | 15.50 | +0.03 | +8.93 | PASS | |
| Vulcan Centaur | 5.4 m long fairing | 5.40 | 21.30 | +0.03 | +14.73 | PASS | |
| Ariane 6 | 5.4 m x 20 m fairing | 5.40 | 20.00 | +0.03 | +13.43 | Yes | PASS |
| Falcon 9 / Falcon Heavy | Standard 5.2 m fairing | 5.20 | 13.10 | -0.17 | +6.53 | FAIL | |
| Falcon 9 / Falcon Heavy | Extended 5.2 m fairing | 5.20 | 18.70 | -0.17 | +12.13 | FAIL |
