LEO NIR 1 m F/6 telescope concept

This site is the current stakeholder-facing index for the AAO mechanical and systems concept work. It is built directly from the generated engineering outputs in this repository, so the renders, reports, manufacturing package, and release gates all point back to the same released design snapshot.

release gate: PASS thermal sanity: PASS launch fit: PASS mass state consistency: PASS

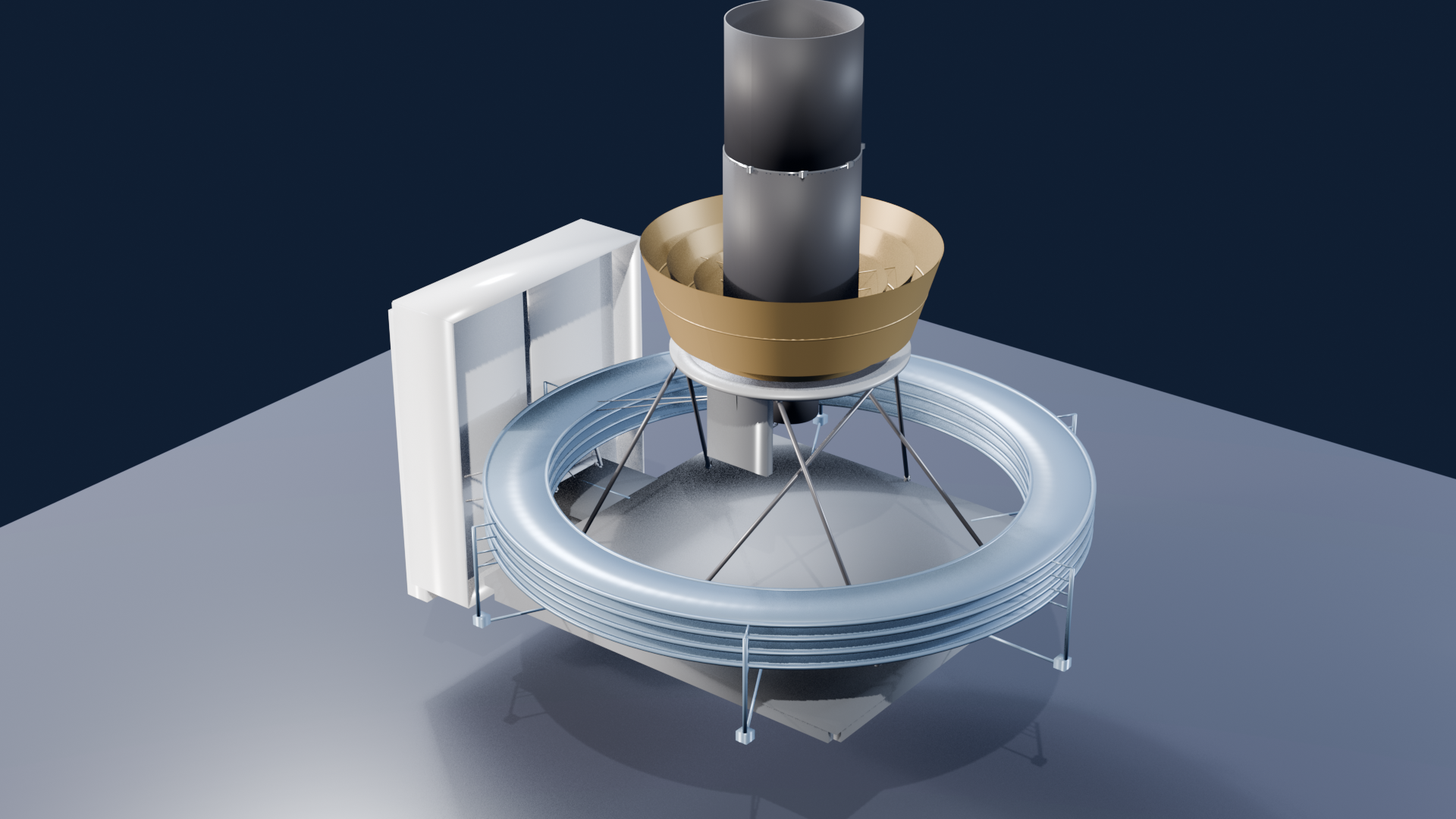

Deployed telescope render — Deployed configuration

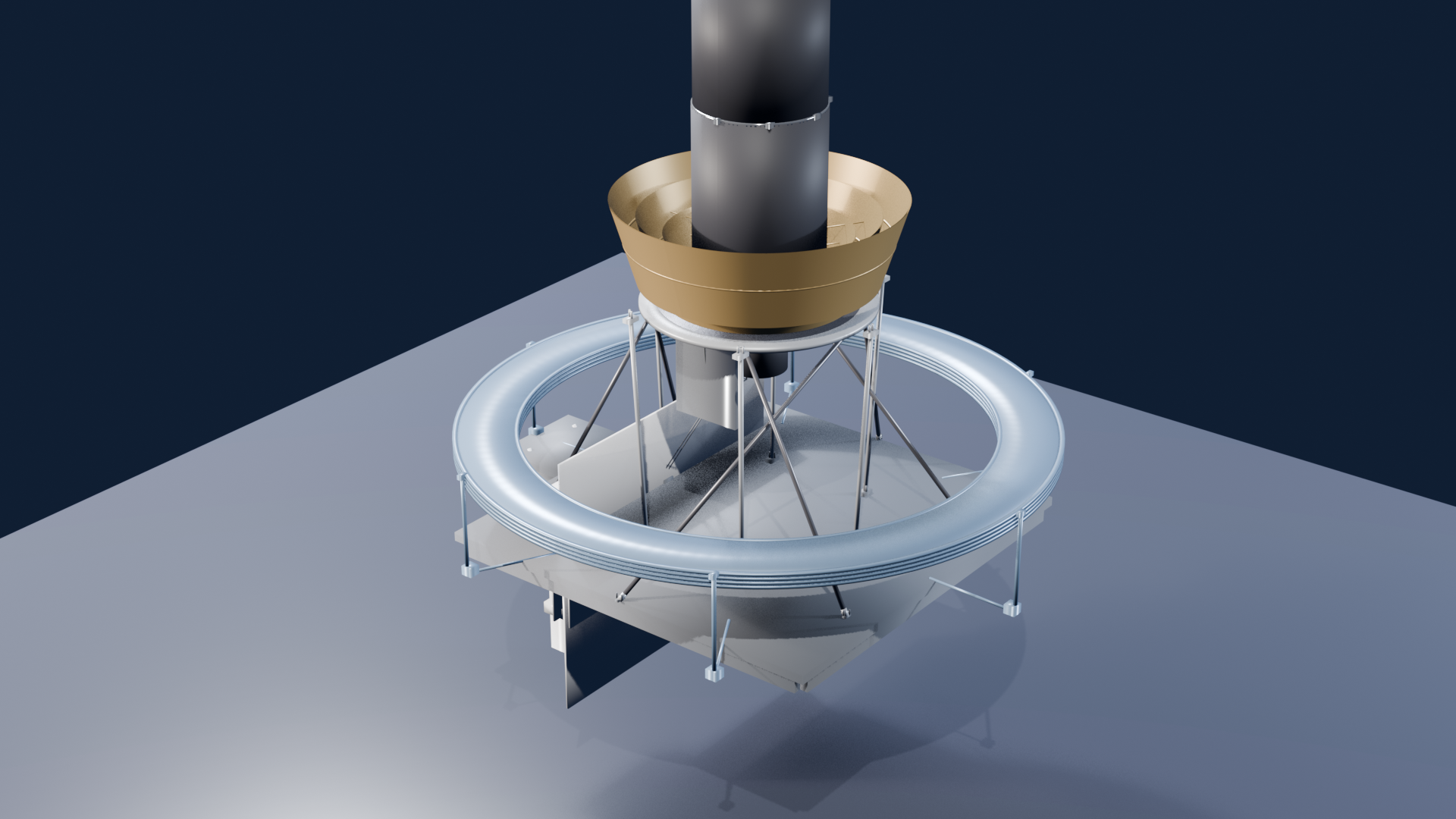

Stowed telescope render — Stowed launch configuration

Program progress

Backlog remaining

Open checklist items still left to do. View the live incomplete backlog.

Completed items

Closed checklist items with recorded completion timestamps from the tracked ledger.

Tracked backlog

Full dashboard with history charts and a provisional finish outlook of 2026-09-29.

Release checks

130/130

Gated checks currently passing in the release-state summary.

Stowed envelope

5.169 m

Diameter, with 6.321 m total height for the Ariane 6 packaged state.

Mass state

529.3 kg

Deployed physical mass, versus 557.4 kg in the stowed state.

Cold survival heater

2.35 W

Detector heater power currently required in the cold-case screening run.

Program decisions and current framing

1.0 m primary mirror, effective F/6.0 Cassegrain concept.
Passive thermal architecture with layered sunshields, V-groove shielding, and a dedicated cold radiator.
Released launcher baseline: ariane6.
Representative orbit model: 600 km sun-synchronous LEO at 97.8 deg inclination.
Sun keep-out envelope: 85 deg to 135 deg boresight-Sun angle.
Current repo state is screening-level engineering, not yet build-to-print or qualification-grade hardware.

The project is currently an engineering concept with strong reproducibility and release-truth checks, not yet a qualification-grade flight design.
The stakeholder site is rebuilt from repo outputs and should be redeployed after each logical chunk of engineering work.
Promotional renders come from Blender outputs that are manifest-signed into the release gate rather than being free-floating marketing images.
All published material on this page is meant to remain traceable back to the current design signature: 837095c6390ee9493e66d5de27386b78d597bbc34ba6eebbff3692c10685768f.

Executive summaries

Release truth gate

outputs/release_state/report.html

One-design-snapshot gate covering geometry, thermal, mass, launch, manufacturing, and render provenance.

design_report.html

High-level concept report from the current design run.

Launch accommodation

outputs/launch_envelope/index.html

Current stowed envelope versus launcher fairings, with Ariane 6 as the released baseline.

Mass properties

outputs/mass_properties/index.html

Mass, center of mass, inertia, and state-consistency outputs for deployed and stowed configurations.

outputs/thermal_sanity/report.html

Screening-level thermal sanity gate, including radiative protection, convergence, and cold-case survival/recovery evidence.

Thermal control

outputs/thermal_control/report.html

Closed-loop detector heater architecture, sensor placement, and set-point stability screening.

Thermal robustness

outputs/thermal_robustness/report.html

Broader screening sweep across sun angle, beta, Earth view, and contamination/EOL cases.

Optical STOP/WFE

outputs/optical_stop/report.html

Coupled structural-thermal-optical image-quality screening for the released hot, cold, and launch-relaxed cases.

Thermoelastic stability

outputs/thermoelastic_stability/report.html

Released hot/cold thermoelastic line-of-sight, refocus, and wavefront-stability screening.

Mechanical screening

outputs/mechanical/mechanical_report.html

Screening-level structural and launch-load report for the current released concept.

Cost and schedule policy

outputs/cost_schedule_policy/report.html

Concept-to-commissioning ROM cost range, released-subsystem coverage, critical-path schedule, reserves, milestones, and dominant program risks.

Promotional renders

Deployed Blender gallery

outputs/blender_renders/index.html

Primary promotional renders for the deployed observatory.

Stowed Blender gallery

outputs/blender_renders_stowed/index.html

Promotional renders for the Ariane-compatible stowed launch configuration.

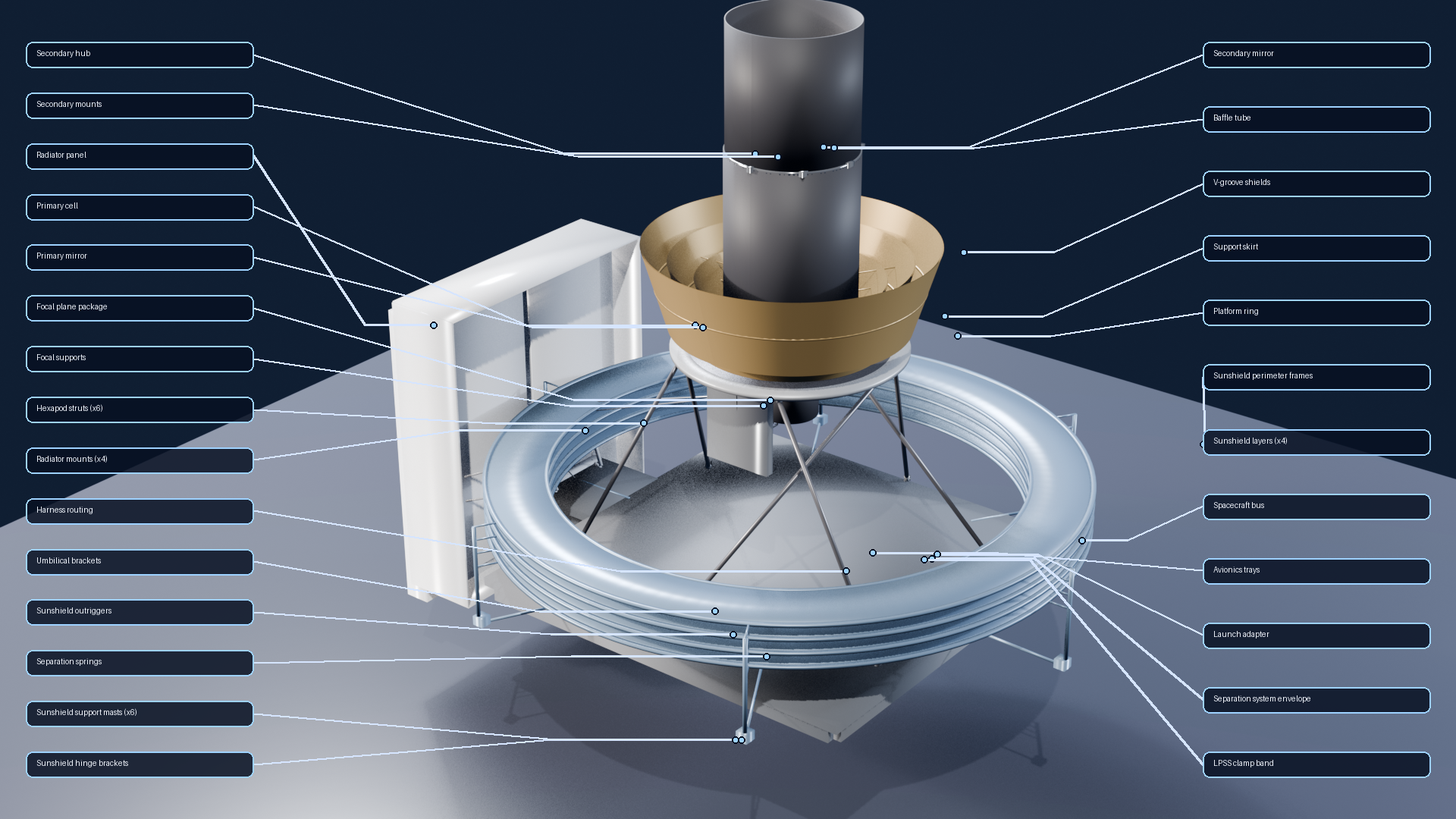

Labeled deployed overview

outputs/blender_renders/labeled_hero_iso.png

Annotated render naming the major subsystems.

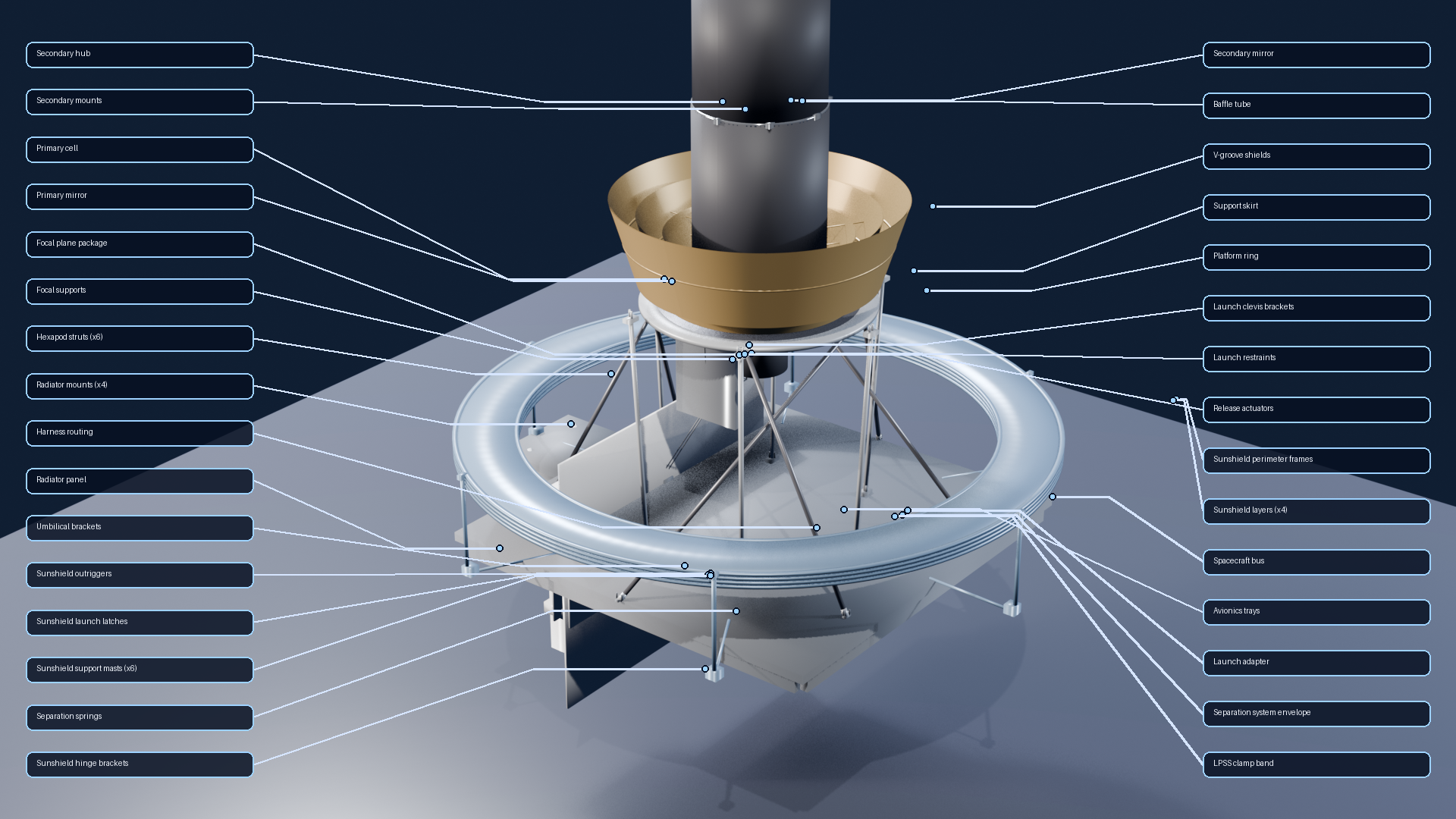

Labeled stowed overview
